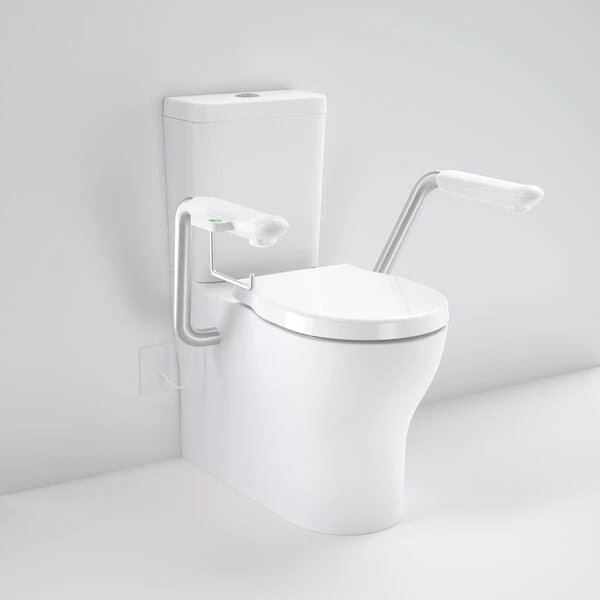

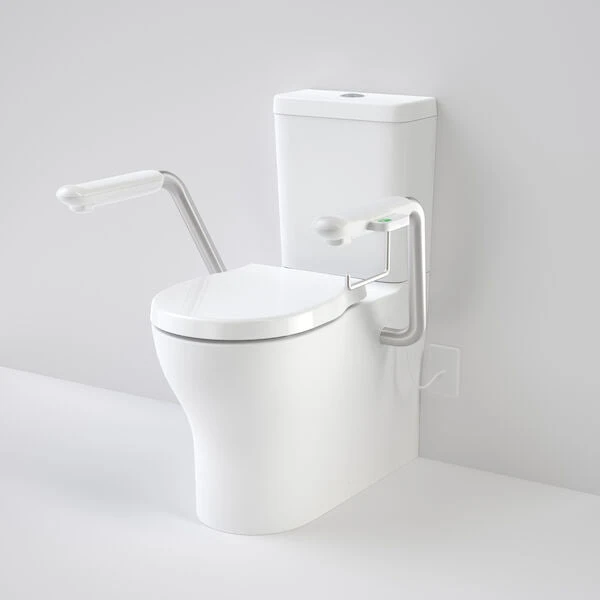

The polished and streamlined designed of the Opal range brings style and functionality to the bathroom environment. The added hygiene of the Cleanflush® rimless flushing system makes the range ideal for hospital, aged care and commercial applications where the absolute highest levels of hygiene and rapid cleaning are required. The inclusion of a raised height pan, extra projection and armrests make it an ideal solution for aged care applications.
- Caroma Cleanflush® technology for the ultimate flushing performance and a more hygienic optimum bowl clean
- Cleanflush® pan provides full visibility of any grime build up, allowing for an easier clean
- Supplied with patented Uni-Orbital connector® for flexible installations
- Extends to any position up to a 50mm radius
- Universal trap suitable for S trap or P trap installations
- Available in S trap or P trap
- Ultra quiet, fast filling back entry cistern
- Back entry vitreous china cistern
- Fully integrated Nurse Call Button (located to the side of armrest to minimise unintentional triggers, wet environment IP56 rating, easy to service and maintain, LED response light)
- Armrest with Toilet Roll Holder

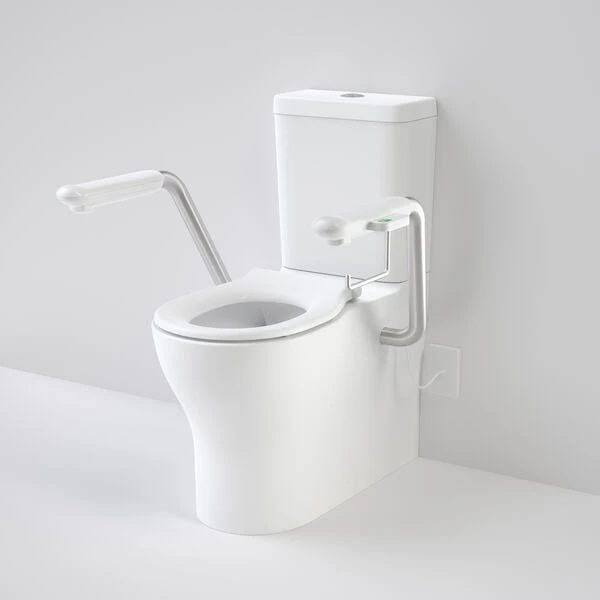

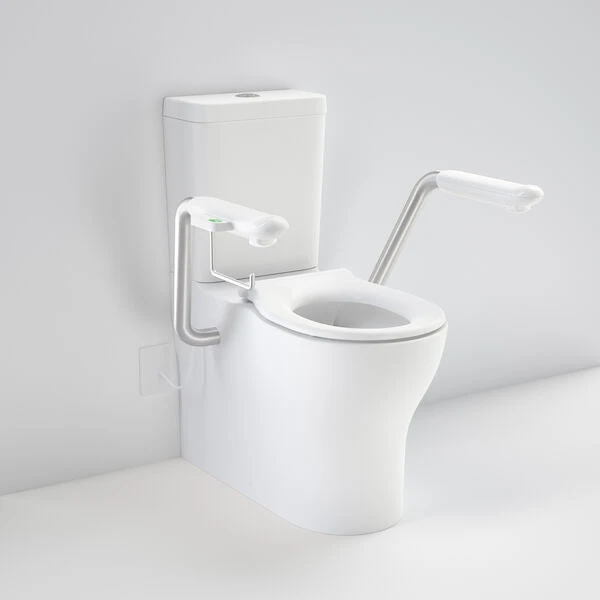

- Includes standard close single flap seat in White (W)
- Please note: Armrests are not suitable for AS1428.1 installations
- Includes integrated stainless steel armrests (each arm load tested to 160kg, no structural wall required for install, inbuilt safety locking mechanism, Includes toilet roll holder on left arm)

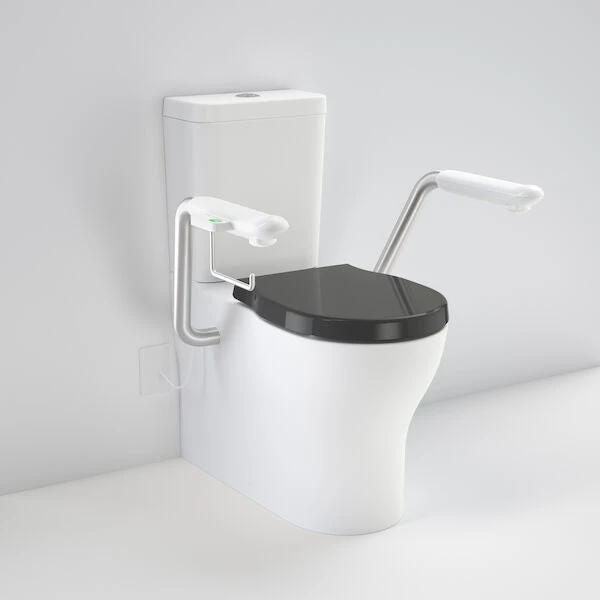

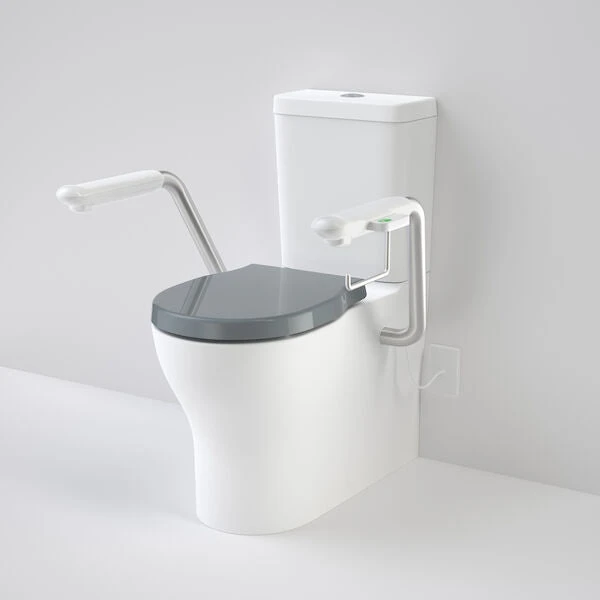

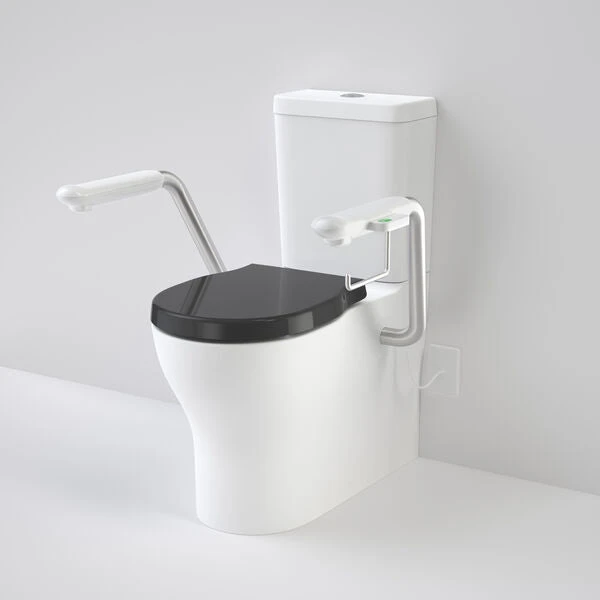

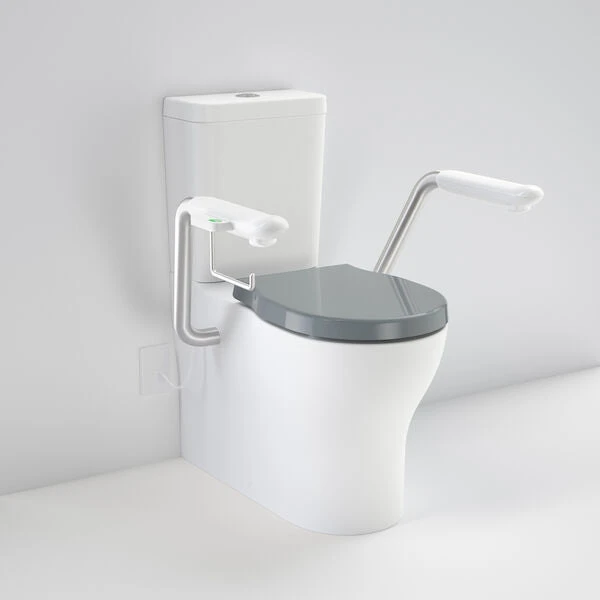

- Includes Opal II soft close double flap or standard close single flap seat in White (W), Black (B) or Anthracite Grey (AG)
- Installation Guide
- Installation Guide 1
- Care Armrest With Toilet Roll Holder

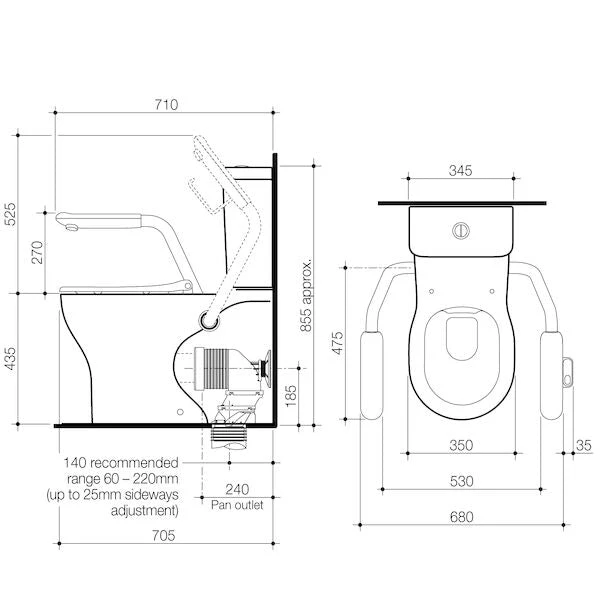

SPECIFICATION
| Product Type | Close coupled |
| TRAP TYPE | Universal |
| P TRAP SET OUT – MIN. (MM) | 185 |
| P TRAP SET OUT – MAX. (MM) | 185 |
| S TRAP SET OUT – MIN. (MM) | 60 |
| S TRAP SET OUT – MAX. (MM) | 220 |
| INLET TYPE | Back Entry |
| MATERIAL | Vitreous China |
| WELS STAR RATING AND FLOW RATE | WELS 4 Rated, 4.5/3 (3.5L average flush) |
