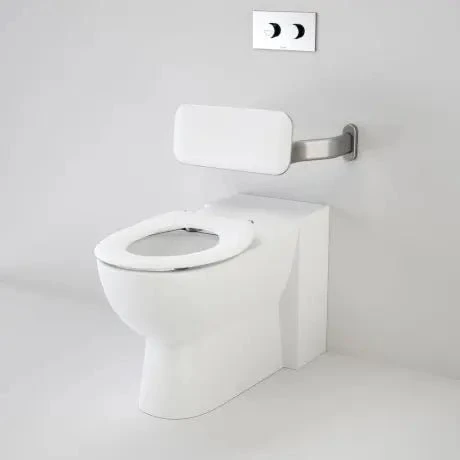

Leda Invisi Series II® suites are a classic style toilet which has stood the test of time. Designed to make life easier for Australians with disabilities and restricted movement, the suite features an Easy Height toilet pan for easier reach, a backrest for additional support and Caroma’s award-winning Invisi Series II® cistern are the perfect balance of performance and appearance. Matched with raised height Invisi summarys and a locally extended wall to provide the required pan projection, this suite is easily installed for applications requiring compliance to AS1428.1 Design for Access & Mobility.
- Meets AS1428.1 Access and Mobility requirements by locally extending the wall to provide required pan projection and used in conjunction with backrest, single flap seat and raised height summarys
- Leda Care Easy Height back inlet pan, ideal for the elderly or people with restricted movement
- Extended 800mm pan projection (by locally extending wall) suitable for wheelchair use. Spacing box is not included
- Universal trap pan for S or P trap installations
- Caroma Uni–Orbital® connector provides flexibility with aligning the waste outlet
- Caroma Adjustable Flushpipe provides flexibility with aligning water inlet to the pan
- For undercounter installation use fixed flushpipe code: 237222
- Includes Caravelle Care single flap seat in either White(W) or Anthracite Grey(AG)
- Includes Caroma stainless steel Backrest
- Raised summarys sold separately, Includes rough in and fit out kits
SPECIFICATION
| Product Type | Care |
| TRAP TYPE | Universal |
| P TRAP SET OUT – MIN. (MM) | 185 |
| P TRAP SET OUT – MAX. (MM) | 185 |
| S TRAP SET OUT – MIN. (MM) | 60 |
| S TRAP SET OUT – MAX. (MM) | 170 |
| INLET TYPE | Concealed Cistern |
| MATERIAL | Vitreous China |
| WELS STAR RATING AND FLOW RATE | WELS 4 Rated, 4.5/3 (3.5L average flush) |
